Product indroduction

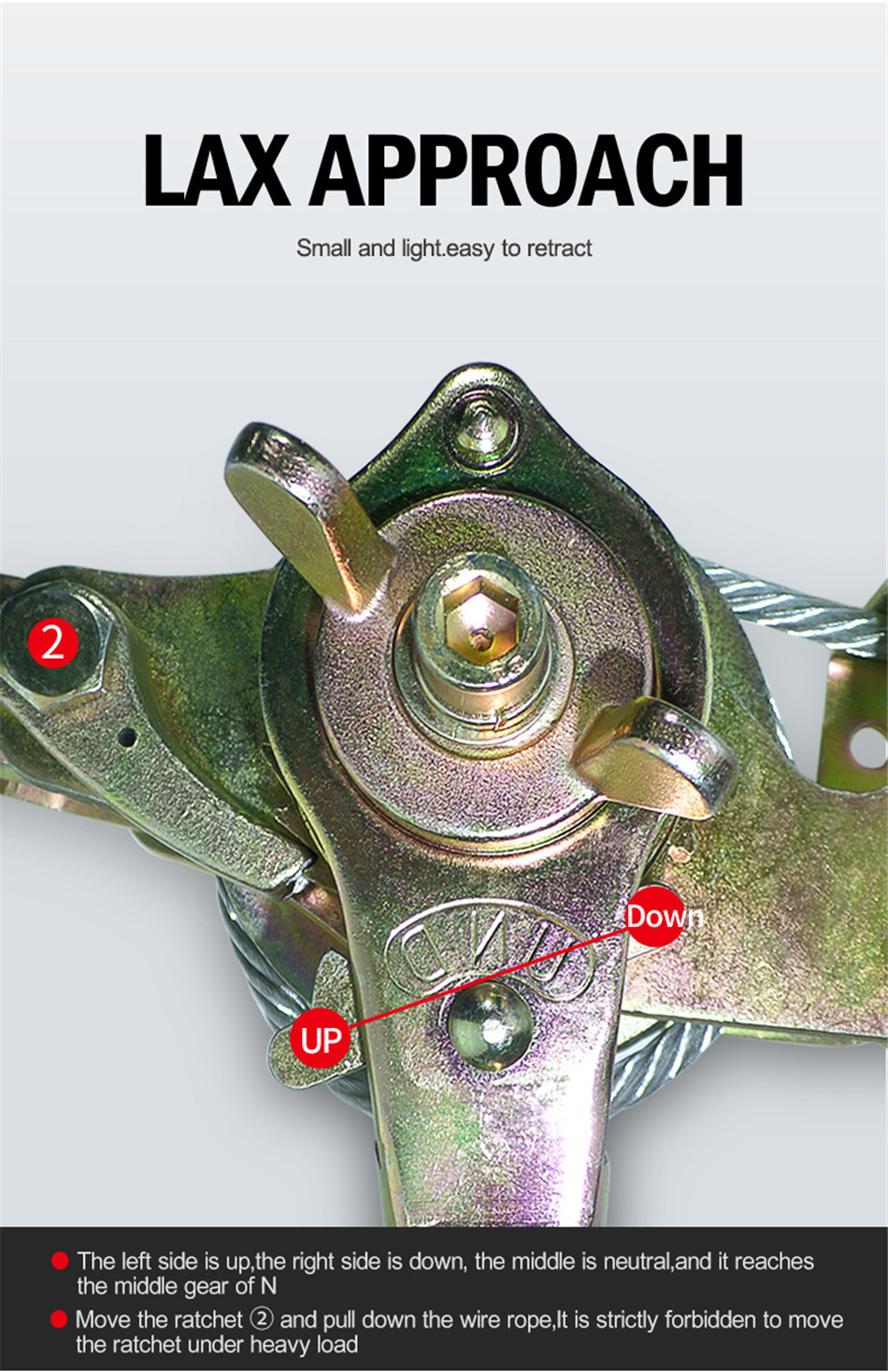

The wire tightener, also known as ratchet tightener, is used to tighten the conductor in the laying construction of overhead line. When in use, loosen the steel wire rope or galvanized iron wire on the tensioner, fix it on the cross arm, clamp the wire with wire clamp, and then pull the special wrench. The tightener is mainly used for mechanical equipment of infrastructure construction projects such as construction, highway, bridge, metallurgy, mine, slope tunnel, shaft treatment and protection.
Features
1. Easy to carry,
2. Easy to use
3. Save time and effort
4. Safe and reliable
Parameters
| Model | Wire rope diameter | Open size | Rated loading | Net weight (kg) |
|
| Wire tightener | 1T | 5mm | 3.4 | ||
| 2T | 6mm | 4.5 | |||
| 3T | 8mm | 6.5 | |||
| Wire clamp | 0.5T | 1-10mm | 0.5T | 0.4 | |
| 1T | 2.5-16mm | 1T | 0.74 | ||
| 2T | 4-22mm | 2T | 1.3 | ||
| 3T | 16-32mm | 3T | 2.3 | ||
| Double head wire clamp | 25-50mm² | 1-11mm | 10KN | 1.9 | |
| 50-70mm² | 3-13mm | 20KN | 2.4 | ||
| 70-120mm² | 4-15mm | 30KN | 3.5 | ||
Details
Application
The wire tightener, also known as ratchet tightener, is used to tighten the conductor in the laying construction of overhead line. When in use, loosen the steel wire rope or galvanized iron wire on the tensioner, fix it on the cross arm, clamp the wire with wire clamp, and then pull the special wrench. The types of wire tighteners are: tiger head wire tightener, curved tooth wire tightener, iron wire tightener, double hook wire tightener, multi-functional wire tightener, triangular wire tightener and Japanese wire clamp.
Multifunctional thread tightener: it comprises a thread clamping part and a thread tightening part, which is characterized in that its thread tightening part is equipped with a toothed wheel and a reversing hook engaged with the toothed wheel in addition to a ratchet wheel on the central shaft. Tiger head tightener: used for tightening steel strand and iron wire of transmission line and communication line.
When using the wire tensioner, loosen the steel wire rope or galvanized iron wire on the wire tensioner, fix it on the cross arm, clamp the wire with wire clamp, and then pull the special wrench.
The wire tightener can improve the safety in the process of cargo transportation and lifting.
FAQ
1. What about the payment term&price term?
As usual, we accept T/T, credit card, LC, Western Union as the payment term, and the price term, FOB&CIF&CFR&DDP etc are ok.
2. What's the delivery time?
Usually, we will delivery the goods within 5-18 working days, but this is aim at 1-10pcs products, if you give more quantity, it just depends.
3. Are we a manufacturer&factory or trading Company?
Hebei Jinteng Hoisting Machinery Manufacturing Co., Ltd is a manufacturer in Hebei, China, we have specialized in crane&hoist over 20 years, our high quality products are welcomed in many countries.
